What a poly cart system is and why it matters on every pull
A poly cart system for irrigation contractors is a matched setup of cart, blade, and grips that holds poly and wire on a reel, feeds it smoothly to the vibratory plow, and keeps one person in control from trailer to backfill. Done right, it cuts labor, rework, and site damage on every job.
Poly carts were built to solve a familiar jobsite headache: loose coils of pipe and wire scattered across the yard, kinking, tangling, and burning labor while your crew fights the mess. Instead of one tech on the machine and one babysitting the coil, a poly cart lets one person pull pipe cleanly while the reel spins under control.
On established lawns, that control matters. Vibratory plows already disturb the surface less than trenchers according to manufacturers like Vermeer, but a bad feed from the coil can still create sudden tension, jerk the machine, or kink the line. A cart keeps the feed aligned with the blade so the pipe follows the slot you cut.
A complete system ties three things together:
- A cart that supports the pipe and wire at the right height
- A blade sized for your depth, soil, and pipe OD
- A grip that won’t slip or chew up the pipe under tension
When those three pieces are designed to work together, you get consistent production, simpler training for new techs, and fewer callbacks from pinched or damaged lines.
How to set up your poly cart for fast, tangle‑free pipe pulls
A poly cart setup for efficient pulls keeps the reel loaded tight, sleeves matched to the pipe size, and the cart aligned with the plow so the pipe feeds straight into the slot. Start at the trailer, stage your run, then connect to the grip with enough tail to make your first connection without fighting slack.
Begin with the reel. Keep the coil banded until the sleeve and outer collar are on the hub, then cut the bands so the poly expands under control. On Dirt Wizards carts, the sleeved reel lets you switch from drip to 3/4 inch, 1 inch, 1‑1/4 inch, or larger sizes without swapping the reel itself—slide on the correct sleeve, lock it with the clevis pins, and you’re ready.
Next, route the pipe through the cart’s guide slot. The high‑clearance axle on the Poly Cart 100 and 125 moves that slot above the axle shafts, so your feed point stays clean as you roll over dirt clods and uneven turf. That consistent angle into the guide keeps the pipe from rubbing, notching, or jumping as tension changes.
Finally, stage your wire. Mount the integrated wire reel on the side of the cart whenever you’re pulling control wire with the lateral. Load 2,500 feet of single‑strand or 1,000 feet of multi‑strand, then feed it through the wire hole. Now both pipe and wire advance at the pace of the plow instead of the pace of the worker behind it.
Load the toolbox with the hand tools you actually use—Forever Grips, knife, clamps—so you are not walking back to the truck mid‑run. A properly set up cart lets one operator keep moving from start to finish.
Best practices for pulling poly with a vibratory plow and cart
To pull poly pipe efficiently with a poly cart and vibratory plow, keep the cart directly in line with the blade path, maintain steady ground speed, and avoid sharp turns that twist the pipe. Plan your runs, check utilities, and let the reel spin at the pace of the pipe instead of stopping and starting.
Industry guides note that vibratory plows can cut restoration time dramatically compared with trenching because the machine slices a narrow slot and backfills as it travels rather than creating a wide trench and spoil pile. You maximize that advantage when the pipe feeds cleanly. Any jerk from a snagged coil transfers straight into the plow and the turf.
On the job, follow these habits:
- Walk the route first, identify obstacles, and choose the smoothest line.
- Keep the poly cart’s axle roughly the same distance behind the plow throughout the pull.
- Avoid crossing previous runs with the cart wheels to minimize ruts and rocking.
- Match blade size and shape to depth, soil, and pipe OD so you are not over‑cutting.

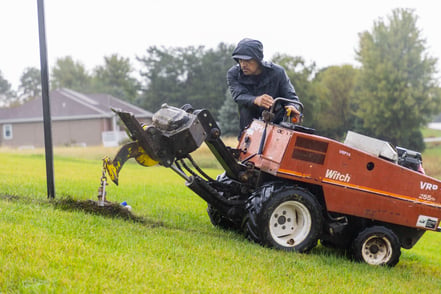

When soil conditions get tougher, a sharp, purpose‑built vibratory plow blade matters. A dull or wrong‑profile blade drags, creates more surface heave, and forces the machine to work harder. Pairing the right blade with a well‑set cart reduces horsepower demand and helps you maintain a consistent feed even in problem areas.
Choosing the right Dirt Wizards Poly Cart model for your work
Choosing the right Dirt Wizards Poly Cart comes down to the pipe sizes you pull most often, how often you switch sizes, and whether you need steering support for larger reels. Match your cart to your common work: residential laterals, mixed drip and poly, or large commercial mains.
For contractors who mainly pull drip, 3/4 inch, and 1 inch poly on typical residential zones, the Poly Cart 100 is the minimalist, do‑everything workhorse. Its sleeved reel shifts from drip core to 3/4 inch or 1 inch poly by sliding on the included sleeve—no extra reels to buy, store, or swap.
If your installs regularly include 1‑1/4 inch laterals, step up to the Poly Cart 125. It ships with two sleeves: one for 3/4 inch and 1 inch poly, and a second for 1‑1/4 inch. High‑clearance axles, all‑steel construction, and flat‑free tires mean you can roll through rough new construction lots without worrying about flats or hang‑ups.
For contractors pulling heavy 1‑1/2 inch and 2 inch mains, especially on large commercial or long‑run projects, the Poly Cart 200 adds a dodecagon reel and four‑wheel stance with front steering. That wider axle plate and matched reel keep the load stable when the plow starts pulling hard, while still giving you the integrated toolbox and wire reel you rely on.
In every case, the goal is the same: one cart, multiple sizes, and years of reliable work.
Using Forever Grips to connect poly to your blade safely and securely
A Forever Grip connection between the poly cart and plow blade transfers pulling force into the pipe without slipping, collapsing the wall, or chewing the outside of the line. The right grip keeps the connection compact so it follows the slot while still holding tight over hundreds of feet.
Instead of improvised clamps or taped‑on fittings that can fail mid‑run, a dedicated grip is built for repeated high‑tension pulls. Slide the Forever Grip over the pipe, seat it correctly, and connect its eye to the vibratory plow blade’s clevis. This connection becomes the link between your cart’s clean feed and the blade cutting through the soil.
On multi‑zone days, a reusable grip saves real time. You disconnect at the end of the run, cut and couple to your manifold, then hook the same grip to the next zone’s pipe without re‑rigging from scratch. Because the grip lives in the cart’s integrated toolbox, it is always within reach when you roll off the trailer.
Reliable grips also protect your reputation. A connection that fails underground can kink or stretch pipe, which may not leak on day one but can become a weak point seasons later. Using a dedicated grip designed for the loads and conditions of vibratory plow work is a small investment that prevents hidden failures and callbacks.
Building a complete Dirt Wizards pipe‑pulling system: cart, blade, grips
A complete Dirt Wizards poly cart system combines the right cart, a sharp vibratory plow blade, and Forever Grips so one operator can pull pipe and wire efficiently, protect the turf, and finish more zones per day. Each component is engineered to support the others, from sleeved reels to toolbox storage.
Start with the cart that matches your pipe sizes and production goals. Then, select vibratory plow blades that cut a clean slot in your soils and match your common depths; a purpose‑built blade minimizes disturbance and helps you take full advantage of the vibratory plow’s low‑impact benefits. The Dirt Wizards Poly Carts are a versatile tool that leading irrigation companies, like Millard Sprinkler who has served the greater Omaha area since 1995, use to deliver the highest degree of quality to its customers.
Finally, standardize on Forever Grips as your connection between pipe and blade. Store them in the cart’s welded toolbox so every crew has the same setup, the same process, and the same results across jobs.
When you are ready to build a complete, matched system for your crews, explore these pages:
Together, these tools form a complete pipe‑pulling system designed so irrigation contractors can work smarter, finish faster, and trust their installs for years.
